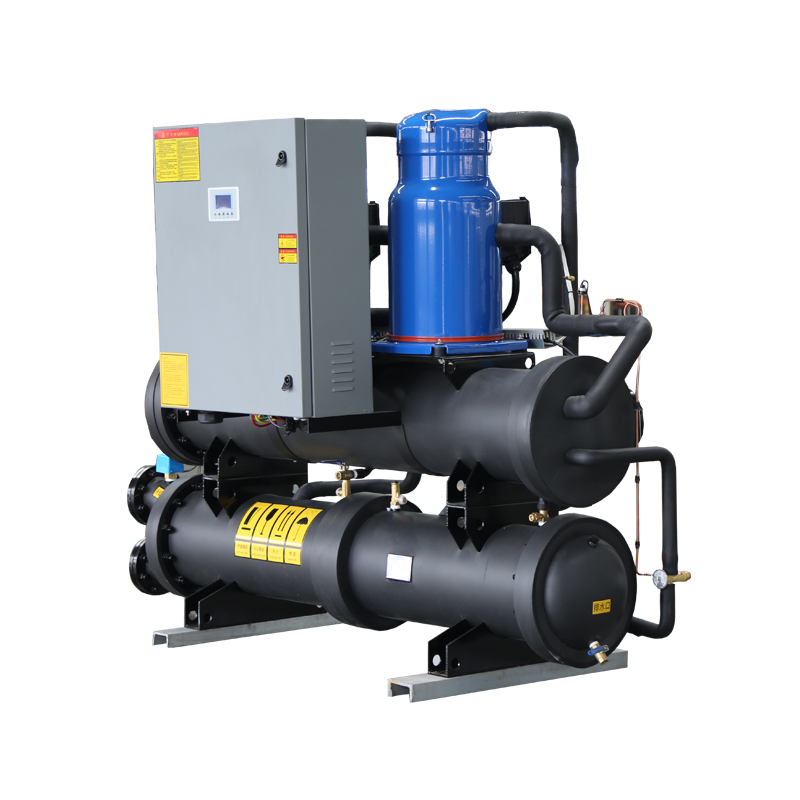

10RT-85.3RT School Office ton water cooled chiller air conditioner system
10RT-85.3RT School Office ton water cooled chiller air conditioner system 10RT-85.3RT School Office ton water cooled chiller air conditioner system
10RT-85.3RT School Office ton water cooled chiller air conditioner system 10RT-85.3RT School Office ton water cooled chiller air conditioner system
10RT-85.3RT School Office ton water cooled chiller air conditioner system 10RT-85.3RT School Office ton water cooled chiller air conditioner system
10RT-85.3RT School Office ton water cooled chiller air conditioner system 10RT-85.3RT School Office ton water cooled chiller air conditioner system
10RT-85.3RT School Office ton water cooled chiller air conditioner system 10RT-85.3RT School Office ton water cooled chiller air conditioner system
10RT-85.3RT School Office ton water cooled chiller air conditioner system 10RT-85.3RT School Office ton water cooled chiller air conditioner system

loading

10RT-85.3RT School Office ton water cooled chiller air conditioner system

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The air-cooled scroll chiller unit is a chilling equipment that utilizes a scroll-type compressor, combining air-cooled and scroll compressor technology. As a result, it can cool stably and efficiently.
For this unit, the core spare part is the scroll compressor. Through this unit, it can reduce water consumption and is also environmentally friendly. What's more, it also has the advantages of large cooling capacity, low noise, and minimal vibration.
Availability:
Quantity:
Inquiry Add to Basket

Key Features and Benefits

  • The unit utilizes a high-quality, fully enclosed scroll compressor. With this scroll compressor, the overall performance of the unit undergoes significant enhancements.

  • The compressor, fans, and motor of this unit are all sourced from world-renowned brands.

  • This unit is equipped with a high-precision Electronic Expansion Valve (EEV). Through the EEV, it can precisely control the flow of refrigerant, thereby greatly improving the stability of the entire unit.

  • This unit is also equipped with high- and low-pressure protection, as well as an anti-freeze protection function. With these functions, the unit can operate smoothly and normally.

Applications

  • Due to the stability and energy efficiency of air-cooled scroll chillers, they are widely used in office buildings, shopping malls, hotels, and restaurants.

  • Air-cooled scroll chillers also play an important role in the industrial manufacturing field. It is widely used in factories, workshops, production lines, and other locations requiring cooling equipment.

Technical parameters

MODEL GSHP90K GSHP130K GSHP160K GSHP200K GSHP240K GSHP90K-C
Cooling Capacity（kW） 90 130 160 200 240 90
Heating Capacity(KW)(45 Water Out Temperature) 95 139 172 215 255 95
Compressor Type Fully enclosed scroll compressor
Qty 2 3 4 5 6 2
Cooling Power Input
（kW）		 16.7 24.1 29.6 37 45 16.7
Heating Power Input（kW）（45℃） 19.6 28.5 35.2 44 53 19.6
Power Supply 380V /3/ 50Hz
Max.Current 2×26 3×26 4×26 5x6 6x26 2×26
Refrigerant Type R22
Charge（kg） 2*7 3*7 4*7 5*7 6*7 2*7
Evaporator Type Shell and Tube
Pressure Drop（kPa） 50 56 58 60 60 50
Pipe Size DN50 DN65 DN65 DN80 DN80 DN50
Water Flow when Cooling（m3 /h） 15.5 22.4 27.5 34.4 41.3 15.5
Water Flow when Heating（m3 /h） 8.3 12.0 14.8 18.5 22.3 8.3
Condenser Type Shell and Tube
Pressure Drop（kPa） 40 45 50 50 50 40
Pipe Size DN50 DN65 DN65 DN80 2-DN65 DN50
Water Flow when Cooling（m3 /h） 8.3 12.0 14.8 18.5 22.3 8.3
Water Flow when Heating（m3 /h） 15.5 22.4 27.5 34.4 41.3 15.5
Dimension Length（mm） 1750 2500 2500 3200 3400 1750
Width（mm） 800 850 900 950 1050 800
Height（mm） 1400 1450 1450 1450 1600 1400
Weight（kg） 680 830 1080 1250 1500 680
Noise（dB） ≤ 76 ≤ 76 ≤ 76 ≤ 76 ≤ 76 ≤ 76
Note:
When ground water cooling conditioning: Loading side water in / out: 12/7, Source water In/out:18 /29
When ground water heating conditioning: Loading side water in / out: 40/45, Source water In/out:15/7
Volks reserves all the right to make whatever modifications if necessary to improve the product at any time without previous notice.


Video


FAQ

Q1：What are the main characteristics of air-cooled scroll chillers?

A: An air-cooled scroll chiller is an air-handling unit that covers a small area. This unit's structure is compact, and because of this, the fault rate of the unit is low, and it is convenient to maintain


Q2：What are the common faults of air-cooled scroll chillers and how to handle them?

A: High cold-water temperature, insufficient water flow, high compressor running current, and refrigerant leakage are all common faults of air-cooled scroll chillers. When dealing with these faults, we should first check whether the cooling tower, water pipeline system, and filter are running normally. Then, we should check whether the compressor and electrical control systems have faults. then we can address these faults.


Q3:  What should be noted when shutting down an air-cooled scroll chiller?

A：When the air-cooled scroll chiller unit stops working, you should close the inlet and outlet valves and stop the pump from running.

Besides, we can regularly check and clean the industrial chiller, which can reduce wear and the possibility of faults.

water cooled chiller 85.3RT water cooled chiller 10RT water cooled chiller School water cooled chiller Office water cooled chiller air conditioner system glycol chiller swimming pool heater and chiller combo hvac chiller system Box chiller
Key Features and Benefits
Applications
Technical parameters
Video
FAQ

  • The unit utilizes a high-quality, fully enclosed scroll compressor. With this scroll compressor, the overall performance of the unit undergoes significant enhancements.

  • The compressor, fans, and motor of this unit are all sourced from world-renowned brands.

  • This unit is equipped with a high-precision Electronic Expansion Valve (EEV). Through the EEV, it can precisely control the flow of refrigerant, thereby greatly improving the stability of the entire unit.

  • This unit is also equipped with high- and low-pressure protection, as well as an anti-freeze protection function. With these functions, the unit can operate smoothly and normally.

  • Due to the stability and energy efficiency of air-cooled scroll chillers, they are widely used in office buildings, shopping malls, hotels, and restaurants.

  • Air-cooled scroll chillers also play an important role in the industrial manufacturing field. It is widely used in factories, workshops, production lines, and other locations requiring cooling equipment.

MODEL GSHP90K GSHP130K GSHP160K GSHP200K GSHP240K GSHP90K-C
Cooling Capacity（kW） 90 130 160 200 240 90
Heating Capacity(KW)(45 Water Out Temperature) 95 139 172 215 255 95
Compressor Type Fully enclosed scroll compressor
Qty 2 3 4 5 6 2
Cooling Power Input
（kW）		 16.7 24.1 29.6 37 45 16.7
Heating Power Input（kW）（45℃） 19.6 28.5 35.2 44 53 19.6
Power Supply 380V /3/ 50Hz
Max.Current 2×26 3×26 4×26 5x6 6x26 2×26
Refrigerant Type R22
Charge（kg） 2*7 3*7 4*7 5*7 6*7 2*7
Evaporator Type Shell and Tube
Pressure Drop（kPa） 50 56 58 60 60 50
Pipe Size DN50 DN65 DN65 DN80 DN80 DN50
Water Flow when Cooling（m3 /h） 15.5 22.4 27.5 34.4 41.3 15.5
Water Flow when Heating（m3 /h） 8.3 12.0 14.8 18.5 22.3 8.3
Condenser Type Shell and Tube
Pressure Drop（kPa） 40 45 50 50 50 40
Pipe Size DN50 DN65 DN65 DN80 2-DN65 DN50
Water Flow when Cooling（m3 /h） 8.3 12.0 14.8 18.5 22.3 8.3
Water Flow when Heating（m3 /h） 15.5 22.4 27.5 34.4 41.3 15.5
Dimension Length（mm） 1750 2500 2500 3200 3400 1750
Width（mm） 800 850 900 950 1050 800
Height（mm） 1400 1450 1450 1450 1600 1400
Weight（kg） 680 830 1080 1250 1500 680
Noise（dB） ≤ 76 ≤ 76 ≤ 76 ≤ 76 ≤ 76 ≤ 76
Note:
When ground water cooling conditioning: Loading side water in / out: 12/7, Source water In/out:18 /29
When ground water heating conditioning: Loading side water in / out: 40/45, Source water In/out:15/7
Volks reserves all the right to make whatever modifications if necessary to improve the product at any time without previous notice.



Q1：What are the main characteristics of air-cooled scroll chillers?

A: An air-cooled scroll chiller is an air-handling unit that covers a small area. This unit's structure is compact, and because of this, the fault rate of the unit is low, and it is convenient to maintain


Q2：What are the common faults of air-cooled scroll chillers and how to handle them?

A: High cold-water temperature, insufficient water flow, high compressor running current, and refrigerant leakage are all common faults of air-cooled scroll chillers. When dealing with these faults, we should first check whether the cooling tower, water pipeline system, and filter are running normally. Then, we should check whether the compressor and electrical control systems have faults. then we can address these faults.


Q3:  What should be noted when shutting down an air-cooled scroll chiller?

A：When the air-cooled scroll chiller unit stops working, you should close the inlet and outlet valves and stop the pump from running.

Besides, we can regularly check and clean the industrial chiller, which can reduce wear and the possibility of faults.
