Maintaining optimal indoor air quality is essential for both comfort and health in modern buildings. As HVAC technology evolves, questions arise about the capabilities of various components within these systems. One such question is whether fan coil units provide fresh air. Understanding the function of fan coil units in relation to fresh air supply is crucial for designing efficient and effective HVAC systems.
Fan coil units are versatile components used in HVAC systems to regulate the temperature within individual spaces. They consist of a fan and a heating or cooling coil, which work together to condition the air in a room. By circulating air over the coil, these units deliver heating or cooling based on the requirements of the space.

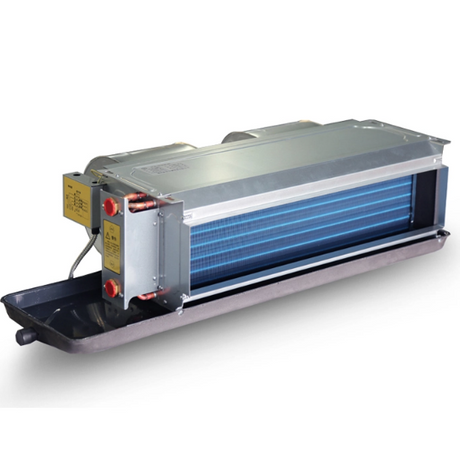

A fan coil unit is a device that uses a coil and a fan to heat or cool air in a specific area. It operates by drawing air from the room, passing it over a coil containing hot or cold water, and then returning the conditioned air back into the space. This process allows for localized temperature control without the need for extensive ductwork.

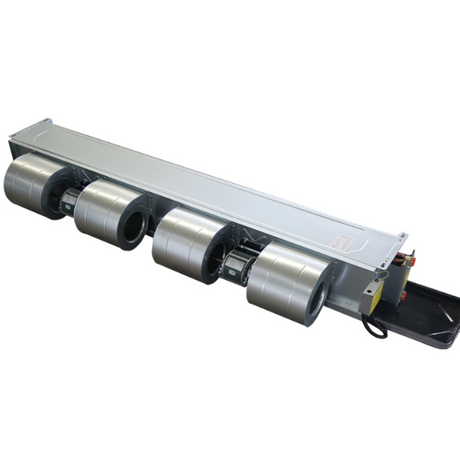

There are several types of fan coil units designed to meet various installation and performance needs. The most common types include horizontal ceiling-mounted units, vertical floor-mounted units, and concealed units integrated into building structures. Among these, hydronic fan coil units and cassette fan coils are widely used due to their efficiency and versatility.
Hydronic fan coil units operate by using water as the heat transfer medium. They connect to a central boiler or chiller system that provides hot or chilled water. The water circulates through the coil, and the fan blows air over it to achieve the desired temperature. This method is energy-efficient because water has a higher heat capacity than air, allowing for better thermal exchange.

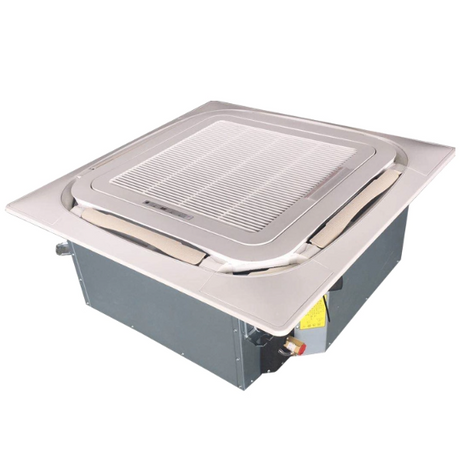

Cassette fan coil units are designed for ceiling installations, fitting discreetly into suspended ceilings. They distribute air evenly in all directions, providing consistent temperature control throughout the space. The concealed nature of these units makes them aesthetically pleasing, ideal for commercial settings where interior design is important.
In HVAC systems, fan coil units serve as the final point of air distribution and temperature regulation within individual zones. They allow for personalized climate control, enabling different areas of a building to maintain varying temperatures based on occupancy and usage. This zoning capability enhances energy efficiency by heating or cooling only the occupied spaces.
Indoor air quality significantly impacts occupant health and productivity. Introducing fresh air into indoor environments is vital for diluting contaminants, controlling humidity, and replenishing oxygen levels. Buildings require effective ventilation strategies to maintain a healthy and comfortable atmosphere.
Fresh air ventilation helps remove indoor pollutants such as carbon dioxide, volatile organic compounds (VOCs), and other airborne particles. Without adequate fresh air, occupants may experience discomfort, allergic reactions, or respiratory issues. Therefore, HVAC systems must incorporate mechanisms to introduce and circulate outdoor air effectively.
Several methods exist for introducing fresh air into buildings. Mechanical ventilation systems use fans and ducts to draw in outdoor air and distribute it throughout the interior spaces. Natural ventilation relies on architectural designs that promote airflow through openings like windows and vents. Hybrid systems combine both approaches for optimized ventilation and energy efficiency.
Fan coil units primarily focus on temperature regulation within a space by recirculating indoor air. They draw air from the room, condition it through heating or cooling, and then supply it back into the same area. This process does not involve introducing fresh outdoor air. Therefore, fan coil units alone do not provide fresh air to indoor environments.
Understanding the difference between air recirculation and fresh air introduction is essential. Air recirculation involves processing the existing indoor air for temperature control without adding new air from outside. Fresh air introduction, on the other hand, brings in outdoor air to replace or dilute indoor air, improving air quality by reducing pollutants and increasing oxygen levels.
To provide fresh air, fan coil units must be integrated with dedicated ventilation systems. This combination ensures that while fan coil units manage temperature control, separate systems introduce fresh air into the building. Common ventilation systems include air handling units (AHUs) and energy recovery ventilators (ERVs), which work alongside fan coil units to maintain indoor air quality.
Although fan coil units do not supply fresh air independently, integrating them into a well-designed HVAC system can enhance overall performance. By coordinating fan coil units with ventilation systems, buildings can achieve efficient temperature control and maintain high indoor air quality standards.
Effective HVAC design requires careful planning to ensure fresh air is adequately supplied. Architects and engineers must consider the building's occupancy patterns, usage, and environmental factors. Integrating systems like DOAS (Dedicated Outdoor Air Systems) can provide continuous fresh air while fan coil units handle individual space conditioning.
Air handling units are responsible for conditioning and distributing fresh air throughout the building. By combining AHUs with fan coil units, HVAC systems can achieve a balance between centralized fresh air supply and localized temperature control. This integration improves energy efficiency and allows for better control over indoor environments.
Real-world implementations demonstrate the effectiveness of integrating fan coil units with ventilation systems. In commercial buildings, such as offices and hotels, this approach provides occupants with a comfortable environment while ensuring air quality standards are met. Similarly, in residential settings, combining these systems enhances comfort and health for occupants.
Commercial buildings often require sophisticated HVAC solutions due to high occupancy levels and varying usage patterns. Integrating HVAC fan coil units with advanced ventilation systems allows facility managers to control temperatures in different zones while maintaining adequate fresh air supply. This strategy enhances energy efficiency and occupant satisfaction.
In residential buildings, comfort and health are paramount. Using fan coil units in combination with mechanical ventilation ensures that homeowners enjoy personalized temperature control along with the benefits of fresh air. This approach reduces energy consumption by targeting specific areas rather than conditioning the entire home uniformly.
Fan coil units are essential for localized temperature control but do not provide fresh air on their own. Integrating them with dedicated ventilation systems is necessary to maintain indoor air quality and comply with building standards. By understanding the role of fan coil units within HVAC systems, designers and facility managers can create efficient and healthy indoor environments.
For optimal HVAC performance, considering products like the fan coil unit offerings from leading manufacturers can provide reliable and efficient solutions. Combining these units with proper ventilation strategies ensures a balance between comfort, health, and energy efficiency.
1. Can fan coil units introduce fresh air into a building?
No, fan coil units primarily recirculate indoor air for heating or cooling purposes. They do not introduce fresh outdoor air unless integrated with a ventilation system.
2. How can fresh air be supplied when using fan coil units?
Fresh air can be supplied by integrating fan coil units with dedicated ventilation systems like air handling units or energy recovery ventilators. This setup ensures both temperature control and fresh air supply.
3. Are hydronic fan coil units more efficient than other types?
Hydronic fan coil units are often more energy-efficient because they use water, which has a higher heat capacity than air, for heat exchange. This efficiency depends on system design and application.
4. What are the benefits of using cassette fan coil units?
Cassette fan coil units are installed in ceilings and distribute air evenly, making them ideal for spaces where aesthetics and unobtrusive design are important. They provide consistent temperature control without visible equipment.
5. Do fan coil units improve indoor air quality?
Fan coil units do not inherently improve indoor air quality since they recirculate existing air. To enhance air quality, they must be used in conjunction with ventilation systems that introduce fresh air and filter contaminants.
6. Can fan coil units be used in residential applications?
Yes, fan coil units are suitable for residential buildings, offering personalized temperature control. When combined with appropriate ventilation, they contribute to a comfortable and healthy living environment.
7. Where can I find reliable fan coil units for my HVAC system?
Reputable manufacturers like Shandong VOLKS Air Conditioning Group Co., Ltd. offer a range of high-quality fan coil units suitable for various applications. Their products are designed to integrate seamlessly with modern HVAC systems.
