In HVAC systems, fan coil units play an important role in keeping indoor spaces comfortable. They help control both temperature and air quality, making them a key part of heating and cooling setups. So, what is a fan coil unit in HVAC? This guide breaks down how they work, the different types available, their benefits, and where they’re commonly used. If you’re looking for options, today’s fan coil units offer smart, flexible solutions for all kinds of buildings.
Fan coil units are integral to HVAC systems, providing localized heating or cooling by circulating air over a coil. They are standalone units consisting of a fan and a heating or cooling coil, and they can function independently or as part of a larger system. Let's explore their definition, components, and operation to grasp their importance.
A fan coil unit is a simple device used to control the temperature in individual spaces without connecting to extensive ductwork. It either heats or cools the air by blowing it over a coil filled with hot or cold water. This mechanism makes fan coil units flexible and efficient solutions for temperature regulation in various settings.
The primary components of a fan coil unit include:
Coil: Acts as the heat exchanger, transferring heat between the water and the air.
Fan: Circulates air over the coil and into the room, maintaining airflow.
Filter: Removes dust and particulates, improving air quality and protecting the coil.
Drain Pan: Collects condensate during cooling operations to prevent water damage.
Control System: Manages temperature and fan speed, providing user control.
These components work in harmony to provide efficient climate control, making fan coil units a popular choice in the HVAC industry.
Fan coil units come in various types, each suited to specific applications and installation requirements. Understanding these differences is essential when selecting the right unit for a particular environment.
The classification of fan coil units often depends on their piping configurations:
Two-Pipe Systems: Utilize a single supply and return pipe for both heating and cooling. They are cost-effective but less flexible, as the system can only provide heating or cooling at one time.
Four-Pipe Systems: Feature separate supply and return pipes for hot and cold water, allowing simultaneous heating and cooling. They offer greater flexibility and comfort but are more complex and costly to install.
The choice between two-pipe and four-pipe systems depends on factors like budget, building design, and specific heating and cooling needs.
Ducted fan coil units are connected to a duct system that distributes conditioned air to multiple spaces. They are ideal for applications requiring concealed installation, such as in ceiling voids or floor spaces. The Ducted Fan Coil options provide efficient and discreet temperature control.
Chilled water fan coil units use cold water supplied by a central chiller to cool the air. They are common in large commercial buildings where centralized cooling is more efficient. These units provide precise temperature control and can be integrated with building management systems for optimal performance.
The operation of fan coil units is based on the principle of heat exchange. They adjust the air temperature by transferring heat between the air and the water circulating through the coil.
In heating mode, hot water flows through the coil. The fan draws in cooler room air, which passes over the hot coil and absorbs heat. The warm air is then circulated back into the room, raising the room temperature.
During cooling mode, chilled water circulates through the coil. The fan pulls in warm room air, which loses heat as it passes over the cold coil. This process also dehumidifies the air, as moisture condenses on the coil and is collected in the drain pan.
Fan coil units offer numerous benefits that enhance HVAC system performance and user comfort.
They allow for individual zone control, enabling users to adjust temperatures in specific areas. This reduces energy consumption by avoiding unnecessary heating or cooling of unoccupied spaces. Additionally, the absence of extensive ductwork minimizes energy losses associated with air distribution.
Fan coil units are available in various sizes and configurations, including floor-mounted, ceiling-mounted, and concealed units. This versatility accommodates different architectural designs and space constraints. The comprehensive range of fan coil products caters to diverse needs.
Installation costs are generally lower due to the minimal requirement for ductwork and centralized equipment. Maintenance is simplified, as components are easily accessible, reducing downtime and service expenses.
Due to their adaptability, fan coil units are used in various settings, each benefiting from their unique features.
In homes and apartments, fan coil units provide individualized comfort. Occupants can adjust the temperature to their preference, enhancing satisfaction and potentially reducing energy bills by only conditioning occupied spaces.
Office buildings, hotels, and retail spaces benefit from the zoned control offered by fan coil units. They accommodate varying occupancy levels and different usage patterns throughout the day, contributing to energy efficiency and occupant comfort.
In industrial environments, fan coil units can address specific heating or cooling needs of processes or equipment. Their modular nature allows for targeted climate control, enhancing operational efficiency.
Proper installation and regular maintenance are critical to the performance and longevity of fan coil units.
Key factors include:
Placement: Ensure accessibility for maintenance and optimal airflow.
Connection: Properly connect to water supply and return lines, and electrical systems.
Insulation: Insulate piping to prevent energy losses and condensation.
Condensate Drainage: Install drain lines with appropriate slope to prevent water buildup.
Routine maintenance tasks include:
Filter Replacement: Replace or clean filters regularly to maintain air quality and efficiency.
Coil Cleaning: Clean coils to prevent dirt buildup that can impede heat transfer.
Inspect Fan Operation: Check for unusual noises or vibrations.
Check Controls: Ensure thermostats and control systems function correctly.
Leak Detection: Inspect for water leaks that could indicate piping or connection issues.
Adhering to these practices prolongs the unit's lifespan and maintains optimal performance.
Fan coil units often work alongside other HVAC components to provide comprehensive climate control:
Air Handling Units (AHUs): Introduce fresh air, enhancing indoor air quality.

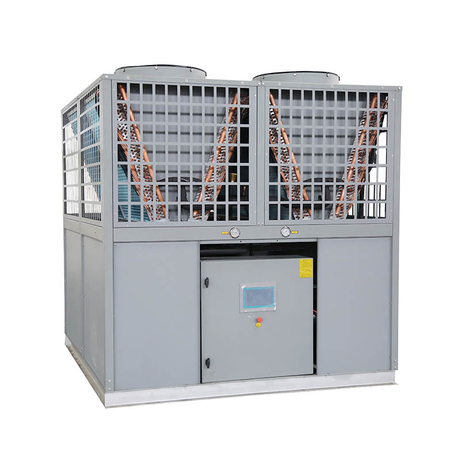

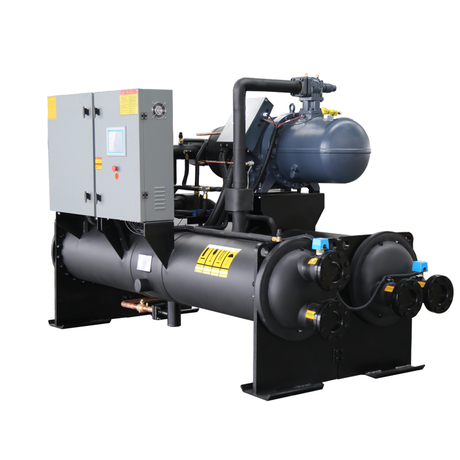

Chillers and Boilers: Supply chilled or hot water to the fan coil units.
Building Management Systems (BMS): Provide centralized control and monitoring.
Integration ensures efficient operation and allows for advanced control strategies, improving overall system efficiency.
Fan coil units play a vital role in modern HVAC systems, offering flexibility, efficiency, and comfort. Understanding their operation, types, advantages, and applications empowers stakeholders to make informed decisions when designing or upgrading HVAC systems. With proper installation and maintenance, fan coil units can provide reliable service for years. Exploring the extensive range of hvac fan coil unit offerings reveals innovative solutions tailored to diverse needs.
1. What is a fan coil unit in HVAC systems?
A fan coil unit is an HVAC component that uses a fan and a coil to provide heating or cooling to a space. It operates by circulating air over a coil filled with hot or cold water, adjusting the room temperature without the need for extensive ductwork.
2. How does a chilled water fan coil unit work?
A chilled water fan coil unit uses chilled water supplied from a central chiller. The cold water circulates through the coil, and the fan blows warm room air over it. Heat is absorbed from the air into the water, cooling the air before it's recirculated into the room.
3. What are the benefits of ducted fan coil units?
Ducted fan coil units offer concealed installation and can condition multiple spaces through a duct system. They provide uniform temperature control, reduce noise levels, and integrate seamlessly with architectural designs.
4. Do fan coil units provide fresh air?
Fan coil units primarily recirculate indoor air and do not supply fresh outdoor air. To provide fresh air, they must be integrated with ventilation systems or paired with air handling units that introduce outside air into the HVAC system.
5. Where can I find a fan coil unit diagram?
Fan coil unit diagrams are available in manufacturer manuals, technical guides, and online resources. These diagrams illustrate the components and operation of the unit, aiding in understanding and troubleshooting. Visit the fan coil unit section for detailed information.
6. What maintenance does a fan coil unit require?
Regular maintenance includes cleaning or replacing air filters, inspecting and cleaning the coil, checking the fan operation, ensuring the control system functions correctly, and inspecting for leaks. Proper maintenance enhances efficiency and extends the unit's lifespan.
7. Why choose an hvac fan coil unit for my building?
HVAC fan coil units offer individualized temperature control, energy efficiency, and flexible installation options. They are cost-effective and suitable for various applications, making them an excellent choice for enhancing indoor comfort and efficiency.
