Low Power Consumption 390kw/520KW/650kw/1040kw 50ton/70tons/90ton/300tons Air Cooled Water Chiller

Low Power Consumption 390kw/520KW/650kw/1040kw 50ton/70tons/90ton/300tons Air Cooled Water Chiller

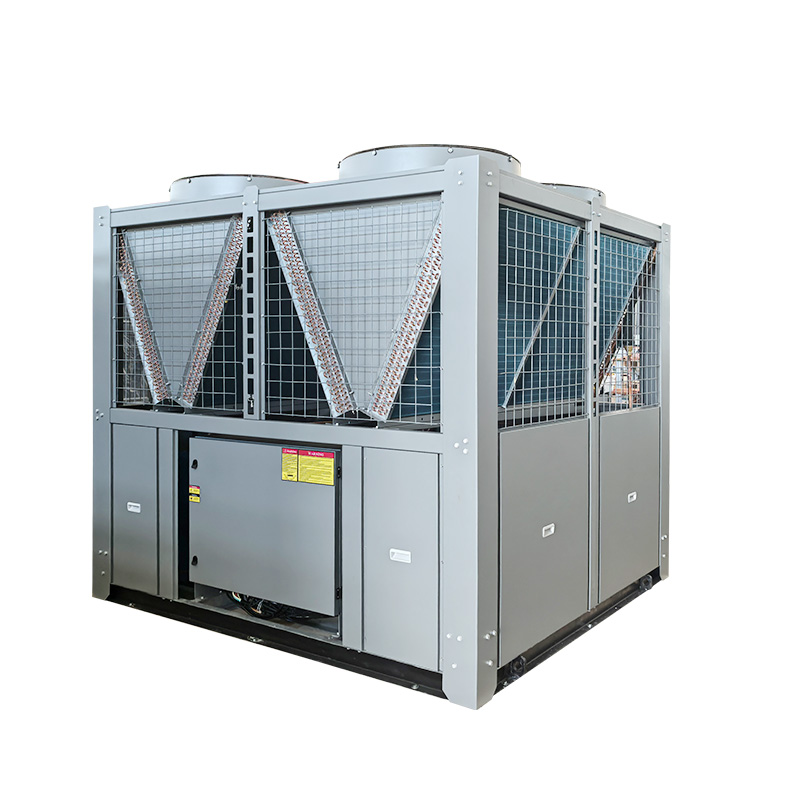

Air-cooled scroll water chiller is an efficient refrigeration equipment, which uses scroll compressor and air cooling technology to provide cold water (usually 7-12℃ outlet water temperature) for buildings or industrial processes through refrigerant circulation. The unit has high integration, no need for additional cooling tower, and is suitable for small and medium-sized refrigeration demand scenarios.

Brand:
VOLKS

Model:	LSQWRF390MGA LSQWRF520MGA LSQWRF650MGA LSQWRF780MGA LSQWRF910MGA LSQWRF1040MGA
Availability:

Quantity:



Inquiry Add to Basket Alibaba.com

Key Features and Benefits

Core components

Scroll compressor: The refrigerant is compressed through the meshing of scroll plates, with stable operation and low noise.
Air-cooled condenser: the high-temperature and high-pressure gas refrigerant is condensed into liquid by forced heat dissipation of the fan.
Evaporator: Liquid refrigerant absorbs heat in the water system here to realize cold water output.
Electronic expansion valve: accurately control refrigerant flow and improve energy efficiency.

Working principle:

The refrigerant is compressed in the compressor → the high-temperature gas enters the condenser to dissipate heat → the liquid refrigerant is depressurized by the expansion valve → it absorbs heat and evaporates in the evaporator → it returns to the compressor for circulation.

Applications

Product advantages and characteristics

High efficiency and energy saving: IPLV value is above 4.5, and the energy efficiency ratio of part load is high.
Low noise design: scroll compressor+variable frequency fan, noise ≤75dB(A).
Intelligent control: Support remote monitoring of the Internet of Things, and automatically adjust the running state.Modular combination: multi-unit parallel design, flexible expansion.

Application scenario

Commercial buildings: central air conditioning systems for office buildings, shopping malls and hotels.
Industrial cooling: cooling of injection molding machine, laser equipment and pharmaceutical process.
Regional refrigeration: data centers, hospitals and other places that need year-round refrigeration.

Technical parameters

Model				LSQWRF390MGA	LSQWRF520MGA	LSQWRF650MGA	LSQWRF780MGA	LSQWRF910MGA	LSQWRF1040MGA
Ambient dry/wet bulb temperature	Inlet/outlet water temperature	Capacity	Unit	LSQWRF390MGA	LSQWRF520MGA	LSQWRF650MGA	LSQWRF780MGA	LSQWRF910MGA	LSQWRF1040MGA
35℃	12/7℃	Cooling Capacity	KW	396	532	665	798	931	1064
		Power Input	KW	145.5	194	242.5	291	339.5	388
		COP	KW/KW	2.72	2.74	2.74	2.74	2.74	2.74
7/6℃	40/45℃	Heating Capacity	KW	465	620	775	930	1085	1240
		Power Input	KW	144	192	240	288	336	384
		COP	KW/KW	3.23	3.23	3.23	3.23	3.23	3.23
Copressor Rated Current			A	37*6	37*8	37*10	37*12	37*14	37*16
Copressor Starting Current			A	260	260	260	260	260	260
Copressor Maxmum Power Input			KW	30*6	30*8	30*10	30*12	30*14	30*16
Compressor			Type	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll
Compressor			Qty	6	8	10	12	14	16
Fan			Type	Axial fan	Axial fan	Axial fan	Axial fan	Axial fan	Axial fan
			Qty	6	8	10	12	14	16
			Power input	1.5*6	1.5*8	1.5*10	1.5*12	1.5*14	1.5*16
			Current	3.96*6	3.96*8	3.96*10	3.96*12	3.96*14	3.96*16
Power supply			V/N/HZ	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50	380/3/50
Refrigerant			kg	R410A/6*13	R410A/8*13	R410A/10*13	R410A/12*13	R410A/14*13	R410A/16*13
Evaporator		Type		Shell and tube type	Shell and tube type	Shell and tube type	Shell and tube type	Shell and tube type	Shell and tube type
		Water Flow	m^3/h	68	92	114	137	160	183
		Pressure Drop	kPa	52	58	58	58	62	65
		Connect Size	DN	150	150	100+150	2-150	2-150	2-150
Dimension		Length	mm	3756	5006	6256	7512	8762	10012
		Width	mm	2270	2270	2270	2270	2270	2270
		Height	mm	2350	2350	2350	2350	2350	2350
Weight		Net Weight	kg	4100	5400	6900	8400	9450	11000
Weight		Runing Weight	kg	4400	5600	7200	8500	9700	11400
Noise			dB(A)	75	75	80	80	80	85

Video

FAQ

Q: Can it be heated in winter?

A: Heat recovery modules need to be installed, and some models support heating.

Q: How to deal with extreme hot weather?

A: The unit is designed with high temperature protection function, and can run at full load at 45℃ ambient temperature.

Q: How long is the maintenance cycle?

A: It is recommended to clean the condenser fins every quarter and change the lubricating oil every year.
